# Analyzing Macro Code in Office Documents

**Tools Used:**

1. **Oletools (OLEVBA)**: A Python-based suite of tools used to analyze and extract VBA source code from Office documents.
2. **Microsoft Word**: Used to debug macro code through the VBA Developer Tools.

**Steps for Analyzing Macro-Enabled Documents:**

1. **Initial Setup**:
   * Revert the VM Snapshot, copy the course files, and run Fakenet.
   * Open the command prompt in the folder where the sample document is located.
2. **Static Analysis with OLEVBA**:

   * Execute the command `olevba re_test_dlx.doc` to analyze the document.

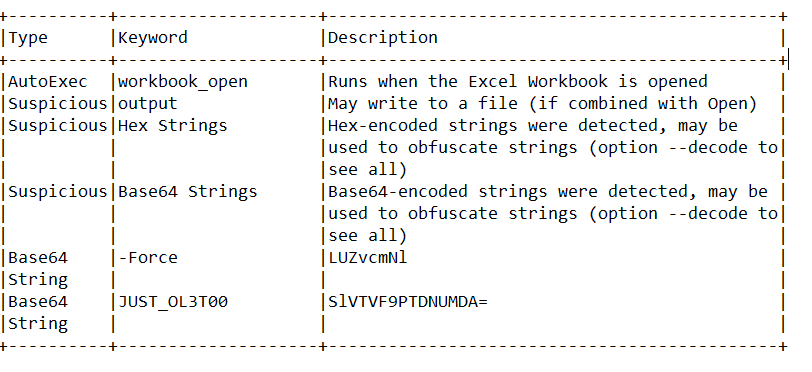

   * OLEVBA provides a summary of the analysis, including potential trigger points such as `Auto_Open` and `Document_Open`.
   * Redirect the output to a text file for easier navigation: `olevba re_test_dlx.doc > olevba_result.txt`.
   * **Key Points to Analyze**:

     * Focus on trigger points like `Auto_Open` and `Document_Open`.
     * Inspect the code for functions like `MsgBox` (displays a message), internet connections, registry modifications, and file executions.

   <figure><img src="https://134720738-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FR4PkR4JTpBXquyhftf9B%2Fuploads%2FVt03JtwHZNTyTrFIN7Bp%2Fimage.png?alt=media&#x26;token=81faeaa2-e339-498f-9a9c-b2ac4c5d39b3" alt=""><figcaption></figcaption></figure>
3. **Understanding the Macro Code**:
   * Analyze the flow of the macro:
     * The macro might display a message, connect to the internet, create a registry entry, and finally execute a file.
   * Pay attention to the usage of functions like `RegWrite` (registry modification) and `Shell` (command execution).
   * Look for obfuscation techniques like the use of `avg` function, which may indicate encrypted or encoded strings.
4. **Dynamic Analysis with Microsoft Word**:
   * Open the document in Microsoft Word (e.g., Word 2013).
   * **Setting Breakpoints**:
     * Use `Alt + F11` to open the VBA Developer Window.
     * Navigate to the `Document_Open` subroutine and add an `End` function to prevent immediate execution of the macro.
     * Set a breakpoint at the first line of the subroutine.
   * **Debugging**:
     * Enable macro content in the Word document to trigger execution.
     * Return to the VBA editor and step through the code using `F8`.
     * Skip decrypting functions if not needed using `Shift + F8`, but it's essential to understand the decryption algorithm.
     * Use the **Watch Window** to monitor variables and expressions, especially to observe decrypted text or key indicators of compromise (IOCs).
5. **Key Observations**:
   * Identify network activity, such as GET requests and the corresponding URLs.
   * Detect the creation of persistent mechanisms (e.g., writing to the registry).
   * Observe any execution of downloaded or created files, such as `badfile.exe`.

**Summary:**

* **OLEVBA** is used for static analysis, helping to identify key functions and trigger points within the macro code.
* **Microsoft Word's VBA Editor** is essential for dynamic analysis, allowing step-by-step debugging to understand the macro's behavior fully.
* Key techniques include setting breakpoints, skipping unnecessary decryption steps, and using the Watch Window to monitor variables and expressions.

These notes cover the fundamental steps and observations when analyzing macro-enabled Word documents for potential malicious activity.
